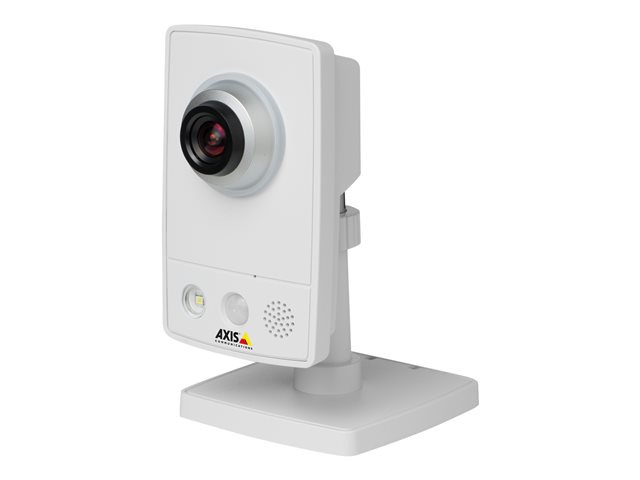

AXIS M1034-W Network Camera - network camera

Mfg. Part: 0522-004|CDW Part: 2823169|UNSPSC: 46171610
  • Network camera
  • color
  • 1280 x 800
  • fixed iris
  • audio
  • wireless
  • Wi-Fi
  • 10/100
  • MPEG-4
  • MJPEG
  • H.264
  • DC 5 V
Availability:5-7 days
Orders placed today will ship within 7 days
$359.09Advertised Price
Lease Option ($11.20 /month) Lease Availability
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to organizations only. Leasing is not available to individuals.
800.808.4239
Mon-Fri 7am-7:30pm CT

Recommended Warranty

Product Overview
Main Features
  • Network camera
  • color
  • 1280 x 800
  • fixed iris
  • audio
  • wireless
  • Wi-Fi
  • 10/100
  • MPEG-4
  • MJPEG
  • H.264
  • DC 5 V
AXIS M1034-W offers the choice of either a wireless or a wired connection to the network. It features Wi-Fi Protected Setup protocol, which simplifies the process of configuring logical security on wireless networks. The combination of the wireless 802.11 b/g/n standard and the WPS protocol assures user-friendliness and high network security, while enabling HDVT video to be streamed reliably over a wireless network.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Video Input
Audio Support: Yes
Audio Support Features: Built-in microphone , Built-in speaker , Two-way audio capability
Camera Mechanical Design: Fixed
Camera Type: Network camera
Color or B&W: Color
Connectivity Technology: Wired , Wireless
Digital Video Format: H.264 , MJPEG , MPEG-4
Features: Alarm function , Brightness control , Built-in LED illuminator , Color control , Contrast control , Digital image rotation , Digital PTZ function , Image mirror , Motion sensor , Sharpness control , White balance , Wi-Fi Protected Setup (WPS)
Max Digital Video Resolution: 1280 x 800
Shutter Speed (Max): 1/8000 sec
Shutter Speed (Min): 1/6 sec

Interface Required
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Total Qty: 1
Type: Network

Optical Sensor
Optical Sensor Size: 1/4"
Optical Sensor Size (metric): 6.4 mm ( 1/4" )
Optical Sensor Type: CMOS
Sensor Size: 1/4"
Sensor Size (metric): 6.4 mm ( 1/4" )

Networking
Network Interface: Ethernet 10Base-T/100Base-TX , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n
Network Protocols: ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , TCP/IP , UDP/IP , UPnP
Wi-Fi: Yes

Environmental Parameters
Humidity Range Operating: 20 - 80% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F

Header
Brand: Axis
Compatibility: PC
Country Kits: United States
Manufacturer: Axis Communications
Model: M1034-W Network Camera
Packaged Quantity: 1
Product Line: AXIS

Lens System
Angular Field of View (H, min, degree): 80
Lens Aperture: F/2.0
Lens Iris: Fixed iris
Min Focal Length: 2.8 mm

Miscellaneous
Color: White
Compliant Standards: ANATEL , AS/NZS 4771 , C-Tick , CISPR 22 , EN 300.328 , EN 301.489.1 , EN 301.489.17 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-6-1 , EN 61000-6-2 , EN 62311 , EN55022 Class B , EN55024 , FCC Part 15 B , FCC Part 15 C , ICES-003 Class B , IEC 60950-1 , KCC Class B , RSS-210 , TELEC , VCCI Class B ITE
Included Accessories: Stand
Product Color: White

Power Device
Form Factor: External
Type: Power adapter

Service
Support Details Full Contract Period: 1 year
Support Details Type: Limited warranty

Slot Required
Type: None

Software
Type: Drivers & Utilities

Video Capture
Frame Rate: 30 fps
Image Resolution: 1280 x 800



Image Resolution: 320 x 240

Dimensions & Weight
Depth: 1.6 in
Height: 3.7 in
Weight: 4.2 oz
Width: 2.3 in

CCTV
Equipment Category: CCTV cameras

CCTV Camera
Alarm Inputs Qty: 1
Alarm Outputs Qty: 1

CCTV Camera Sensitivity
F-number: F2.0
Minimum Illumination (lux): 1.2

Flash Memory
Installed Size: 128 MB

Power
Low Voltage Power: DC 5 V

RAM
Installed Size: 256 MB

Service & Support
Type: 1 year warranty
