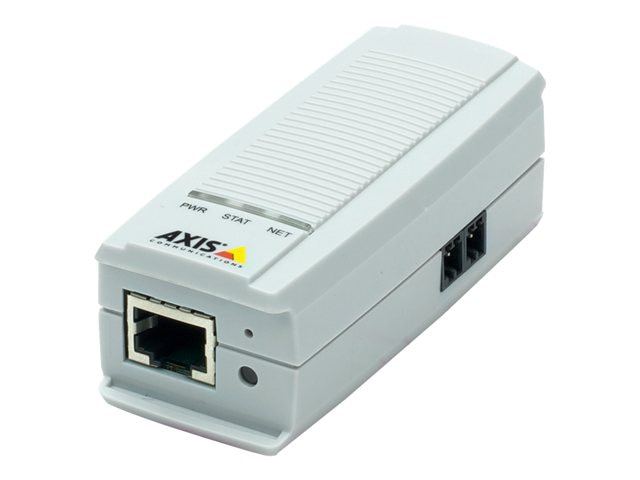

AXIS M7001 Video Encoder - video server - 1 channels

Mfg. Part: 0298-001|CDW Part: 1689162|UNSPSC: 46171621
  • Video server
  • 1 channels
Availability:5-7 days
Orders placed today will ship within 7 days
$269.32Advertised Price
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to organizations only. Leasing is not available to individuals.
800.808.4239
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Video server
  • 1 channels
The one-channel AXIS M7001 Video Encoder offers a highly compact design with superb H.264 performance. It provides an easy and cost-effective solution for integrating small or large numbers of analog CCTV cameras into an IP-based video surveillance system.

The palm-sized, standalone AXIS M7001 is designed for installation close to an analog camera. It supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. AXIS M7001 is perfect for small and large analog video installations, especially where an IP network infrastructure is already in place. Its small size also makes it ideal for use in discreet surveillance applications, for example, in retail stores and banks, and in camera housings.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Connections (Y)
Audio Input Ports: Sub-mini phone 2.5 mm x 1
Camera Control Interface (PTZ): RS-422/485
Network Port: 10/100Base-T
Video Input Ports: BNC x 1

Dimensions & Weight
Depth: 4 in
Height: 1.2 in
Weight: 2.9 oz
Width: 1.5 in

Environmental Parameters
Humidity Range Operating: 20 - 80%
Max Operating Temperature: 122 °F
Min Operating Temperature: 32 °F

General
Audio Channels: 1
Compression Format: H.264 , MJPEG
Device Type: Video server
Image Resolution: 176x120 (NTSC) , 176x144 (PAL) , 720x480 (NTSC) , 720x576 (PAL)
TV System: NTSC/PAL
Video Channels: 1

Header
Brand: Axis
Manufacturer: Axis Communications
Model: M7001 Video Encoder
Packaged Quantity: 1
Product Line: AXIS

Miscellaneous
Compliant Standards: C-Tick , CISPR 22 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B , VCCI Class B ITE
Package Content: Manual , Mounting kit , Software , Video server

Networking
DDNS Support: Yes
Features: E-mail alert , Firmware upgradable , IP address filtering , Power over Ethernet (PoE)
Network Interfaces: Ethernet 10Base-T/100Base-TX
Supported Protocols: ARP , Bonjour , DDNS , DHCP , DNS , FTP , HTTP , HTTP over SSL , ICMP , IGMP , NTP , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , TCP/IP , UDP/IP
Web Server: Yes

Software
Software Included (Y): Drivers & Utilities

Video Server
CPU: ARTPEC-3
Features: Motion detection , PAL/NTSC auto-sensing input , PTZ support
Flash Memory: 128 MB
Frame Rate: 25 fps (PAL) , 30 fps (NTSC)
RAM: 64 MB

Warranty
Warranty: 1 year
