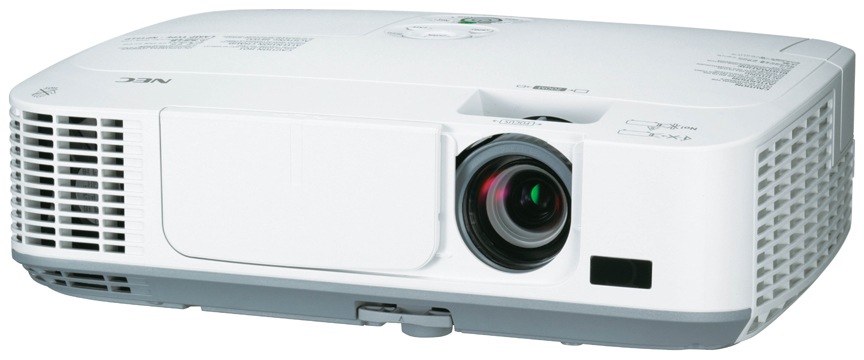

NP-M300X NEC Projector

Mfg. Part: NP-M300X   |  CDW Part: 2184761  |  UNSPSC: 45111614

This product was discontinued as of Wednesday, January 16, 2013. Call for availability.
Present with ease using the NEC M300X, a value-driven, eco-friendly portable projector ideal for education and small-to-medium-sized business environments.
Main Features





Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • Present with ease using the NEC M300X
  • a value-driven
  • eco-friendly portable projector ideal for education and small-to-medium-sized business environments.
This 3000-lumen model delivers remarkably bright images and features wired and wireless (optional) networking, HDMI and USB inputs, high contrast, remote monitoring, maintenance-free design, and up to 6000 hours of lamp life (in ECO ModeTM). Ideal fo
Present with ease using the NEC M300X, a value-driven, eco-friendly portable projector ideal for education and small-to-medium-sized business environments. This 3000-lumen model delivers remarkably bright images and features wired and wireless (optional) networking, HDMI and USB inputs, high contrast, remote monitoring, maintenance-free design, and up to 6000 hours of lamp life (in ECO ModeTM). Ideal for K-12 classrooms and conference rooms, the M300X touts an active lens cover, which hides content, mutes audio and lowers lamp brightness to 25%, allowing you to maximize the effectiveness of your presentations.
HDMI input connects you to high-definition sources
USB Viewer allows you to present without a PC using a USB flash drive
Variable audio-out allows the remote control to adjust the volume of self-powered external speakers connected to the projector
ECO ModeTM technology helps extend lamp life and lowers power consumption
Integrated active lens cover mutes audio and video while lowering the lamp power to 25% to conserve energy
Integrated RJ-45 and/or wireless LAN (optional) quickly connects to the LAN for control or image transmission
Dual computer inputs ensure quick switching between presentations
Virtually maintenance-free design includes improved 6000-hour filter life













Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Cable Details
Included Qty: 1
Camera
Type: None
Projector
Brightness: 3000 ANSI lumens
Class: Digital projector
Contrast Ratio: 2000:1
Controls & Adjustments: Aspect control , Keystone correction
Display Resolution Abbreviation: XGA
Max H-Sync Rate: 100 kHz
Max Image Size: 299 in
Max Resolution (Resized): 1600 x 1200
Max Screen Distance: 45 ft
Max V-Sync Rate: 120 Hz
Min Image Size: 25.2 in
Min Screen Distance: 2 ft
Native Aspect Ratio: 4:3
Native Resolution: 1024 x 768
Portability: Portable
Projector Features: Advanced AccuBlend technology , Auto Vertical Keystone , AutoSense technology , Colour Management System , Deep Color , Eco-Mode technology , Freeze frame , JPEG photo playback , Micro Lens Array (MLA) Technology , Wall color correction
Recommended Use: Presentation and multimedia
Throw Ratio: 1.3 - 2.2 :1
Type: LCD projector
Projector Lens System
Focus Type: Manual
Keystone Correction Direction: Vertical
Keystone Correction Type: Digital
Lens Aperture: F/1.7-2.2
Vertical Keystone Correction: -30 / +30
Zoom Factor: 1.7x
Service & Support Details
Component: Lamp
Display
Display Resolution Abbreviation: XGA
Projector Image Brightness: 3000 ANSI lumens
Type: LCD projector
Input Device
Form Factor: External
Interface Provided
Connector Type: 15 pin HD D-Sub (HD-15)
Interface (Output): VGA / component video input
Qty: 2
Interface (Output): VGA output
Qty: 1
Connector Type: 19 pin HDMI Type A
Interface (Output): HDMI input
Connector Type: RCA
Interface (Output): Composite video input
Connector Type: 4 pin mini-DIN
Interface (Output): S-video input
Connector Type: RCA phono x 2
Interface (Output): Audio line-in
Connector Type: Mini-phone stereo 3.5 mm
Interface (Output): Audio line-out
Connector Type: 9 pin D-Sub (DB-9)
Interface (Output): Serial RS-232
Connector Type: RJ-45
Interface (Output): Network
Connector Type: 4 pin USB Type B
Interface (Output): USB
Connector Type: 4 pin USB Type A
Interface (Output): Hi-Speed USB
Service
Support Details Full Contract Period: 2 years
Support Details Service Included: Parts and labor
Support Details Type: Limited warranty
Support Details Full Contract Period: 1 year / 500 hours
Audio Input
Type: None
Audio Output
Form Factor: Integrated
Output Power Channel: 10 Watt
Sound Output Mode: Mono
Type: Speaker(s)
Cabinet
Chassis Built-in Devices: Speaker
Cable
Connectivity Details Length: 6 ft
Connectivity Details Type: VGA cable
Display (Projector)
Image Contrast Ratio: 2000:1
Max Resolution: 1024 x 768
Environmental Parameters
Humidity Range Operating: 20 - 80% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 41 °F
Sound Emission: 34 dB
Sound Emission (Economic Mode): 27 dB
Header
Brand: NEC
Compatibility: Mac , PC
Manufacturer: NEC Technologies
Model: NP-M300X
Packaged Quantity: 1
Product Line: NEC
Miscellaneous
Compliant Standards: CSA , DDC/CI , FCC Part 15 B , ICES-003 Class B , NOM , UL 60950-1
Included Accessories: Carrying case , Lens cover , Wireless remote control
Security Features: Control panel lock , Password protection , Security bar , Security lock slot (cable lock sold separately)
Power Device
Form Factor: Internal
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 248 Watt
Power Consumption Stand by Sleep: 8 Watt
Type: Power supply
Software
Type: Drivers & Utilities
Video Input
Analog Video Format: NTSC , NTSC 4.43 , PAL , PAL 60 , PAL-M , PAL-N , SECAM
Analog Video Signal: Composite video , RGB , S-Video
Digital Video Standard: High-Definition Multimedia Interface (HDMI)
Video Interfaces: Composite video , HDMI , S-Video , VGA
Video Modes: 1080i , 1080p , 480i , 480p , 576i , 576p , 720p
Dimensions & Weight
Depth: 10.1 in
Height: 3.9 in
Weight: 6.4 lbs
Width: 13.3 in
Projector Lamp
Lamp Capacity: 180 Watt
Lamp Life Cycle: 5000 hour(s)
Lamp Life Cycle (Economic Mode): 6000 ns
Service & Support
Type: 2 years warranty
