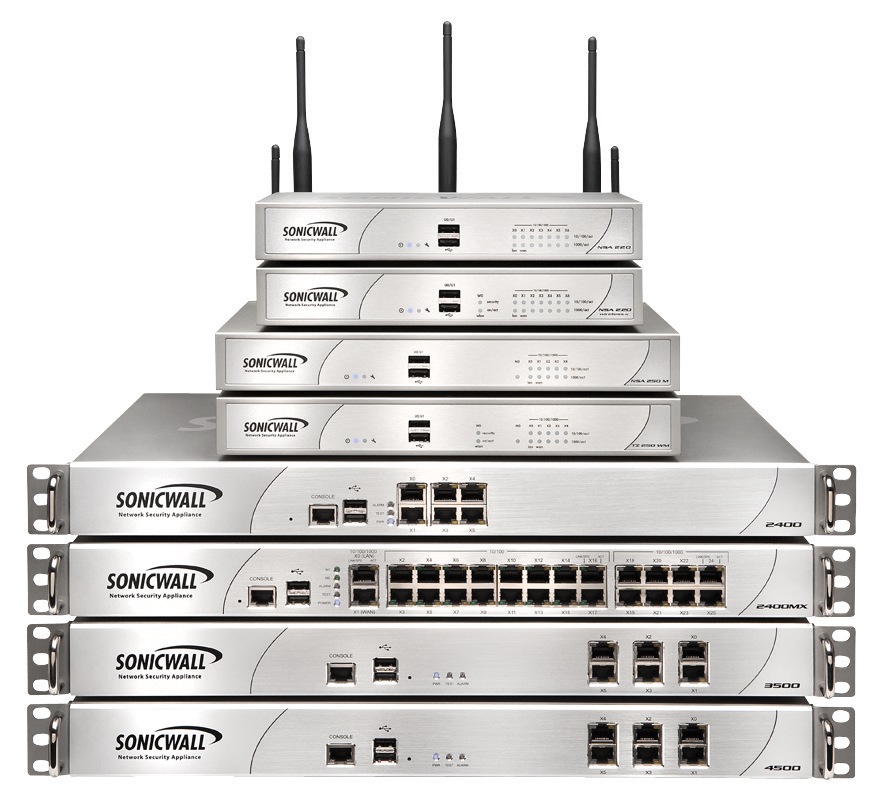

Dell SonicWALL NSA 220 Wireless-N TotalSecure - security appliance

Mfg. Part: 01-SSC-9745|CDW Part: 2542698|UNSPSC: 43222501
  • Security appliance
  • with 1 year GAV/AS/IPS/Application Intelligence Service/Content Filtering Service and Dynamic Support 24X7
  • 7 ports
  • 10Mb LAN
  • 100Mb LAN
  • GigE
  • 802.11 a/b/g/n
  • Dual Band
  • 1U
  • for WAN Acceleration Appliance WXA 2000
  • WXA 4000
Availability:3-5 days
Orders placed today will ship within 5 days
$1,635.89Advertised Price
Lease Option ($51.04 /month) Lease Availability
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to organizations only. Leasing is not available to individuals.
800.808.4239
Mon-Fri 7am-7:30pm CT

Recommended Warranty

Product Overview
Main Features
  • Security appliance
  • with 1 year GAV/AS/IPS/Application Intelligence Service/Content Filtering Service and Dynamic Support 24X7
  • 7 ports
  • 10Mb LAN
  • 100Mb LAN
  • GigE
  • 802.11 a/b/g/n
  • Dual Band
  • 1U
  • for WAN Acceleration Appliance WXA 2000
  • WXA 4000
SonicWALL NSA 220 Series high-performance Next-Generation Firewalls offer branch offices and distributed enterprises in-depth frontline security, application and user control, network productivity and optional 802.11 dual-band wireless. The NSA 220 acts as the first line of network defense against viruses, Trojans, key-loggers and other application layer attacks, without compromising network performance. By consolidating many functions, including the security of networking, remote access and wireless, the solution simplifies management.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Antenna
Antenna Form Factor: External detachable
Antenna Qty: 3

Capacity
Type: Connection / user qty
Value: 85000



Type: DPI connections
Value: 32000



Type: New sessions per second
Value: 2200



Type: Authenticated users (internal database)
Value: 100

Card Reader
Supported Flash Memory Cards: CompactFlash Card

Dimensions & Weight
Depth: 7.1 in
Height: 1.5 in
Weight: 2.1 lbs
Width: 10.5 in

Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing)
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F

Flash Memory
Installed Size: 32 MB

Header
Brand: Dell SonicWALL
Compatibility: PC
Manufacturer: SonicWALL
Model: 220 Wireless-N TotalSecure
Packaged Quantity: 1
Product Line: Dell SonicWALL NSA

Interface Provided
Connector Type: RJ-45
Qty: 7
Type: 1000Base-T



Qty: 1
Type: Management



Connector Type: Type A
Qty: 2
Type: USB

IP Telephony
IP Telephony Features: VoIP gatekeeper support , VoIP outbound bandwidth management
VoIP: Yes
VoIP Protocols: H.323 v1 , H.323 v2 , H.323 v3 , H.323 v4 , H.323 v5 , SIP

Miscellaneous
Authentication Method: Active Directory , Extensible Authentication Protocol (EAP) , Internal user database , LDAP , RADIUS , Secure Shell (SSH) , X.509 certificates , XAUTH authentication
Compliant Standards: C-Tick , CB , cUL , EAL 4+ , FCC Class A certified , FIPS 140-2 , MIC , NOM , RoHS , TUV GS , UL , VCCI , WEEE
Encryption Algorithm: 128-bit AES , 192-bit AES , 256-bit AES , DES , IKE , MD5 , PEAP , PKI , SHA-1 , TKIP , Triple DES , TTLS , WPA , WPA-PSK , WPA2 , WPA2-PSK
Height (Rack Units): 1
MTBF: 15 year(s)

Networking
Compliant Standards: IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11i , IEEE 802.11n , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1x , IEEE 802.3 , X.509
Connectivity Technology: Wired , Wireless
Data Link Protocol: Ethernet , Fast Ethernet , Gigabit Ethernet , IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n
Data Transfer Rate: 1 Gbps
Features: Anti-spam protection , Antivirus analysis , Content filtering , DDos attack prevention , Dead Peer Detection (DPD) , Deep Packet Inspection (DPI) , DHCP server , DHCP support , DoS attack prevention , Dynamic DNS server , Firewall protection , High Availability , Intrusion Prevention System (IPS) , IPSec NAT-Traversal (NAT-T) , IPv6 support , Load balancing , MIMO technology , Quality of Service (QoS) , Stateful Failover , Syslog support , VPN support
Form Factor: External
Network Transport Protocol: DHCP , ICMP/IP , IPSec , L2TP , PPPoE , PPTP , TCP/IP , UDP/IP
Ports Qty: 7
Remote Management Protocol: HTTP , HTTPS , SNMP 2 , SSH
Routing Protocol: OSPF , Policy-based routing (PBR) , RIP-1 , RIP-2 , Static IP routing
Type: Security appliance
Wi-Fi Bands: 2.4 GHz , 5 GHz
Wireless Protocol: 802.11 a/b/g/n

OS Provided
Type: SonicOS

Performance
Type: Stateful throughput
Value: 600 Mbps



Type: Gateway anti-virus throughput
Value: 115 Mbps



Type: IPS throughput
Value: 195 Mbps



Type: Full Deep Packet Inspection (DPI) throughput
Value: 110 Mbps



Type: Firewall throughput (IMIX)
Value: 180 Mbps



Type: VPN throughput (3DES/AES)
Value: 150 Mbps

Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 15 Watt
Power Provided: 36 Watt
Type: Internal power supply

RAM
Installed Size: 512 MB

Service & Support
Bundled Services: 1 year GAV/AS/IPS/Application Intelligence Service/Content Filtering Service and Dynamic Support 24X7
