All Categories  > Networking Products  > KVM Switches  > StarTech.com Enhanced KVM Switch Over IP SV441HDIE - KVM switch - 4 ports
StarTech.com Enhanced KVM Switch Over IP SV441HDIE - KVM switch - 4 ports

StarTech.com Enhanced KVM Switch Over IP SV441HDIE - KVM switch - 4 ports

Mfg. Part: SV441HDIE  |  CDW Part: 1350152  |  UNSPSC: 43211604

This product was discontinued as of Tuesday, December 29, 2009. Call for availability.
KVM switch - PS/2 - 4 ports - 1 local user - 1 IP user - 1U - rack-mountable - cascadable
Main Features
Log On to Email this Page or
Add to Favorites.





Looking for a replacement?
Consider one of these or find similar items
Startech.com 4 Port USB VGA IP KVM Switch with Virtual Media
$652.36
Product Overview
Technical Specs
Accessories

Compatible Accessories for StarTech.com Enhanced KVM Switch Over IP SV441HDIE - KVM switch - 4 ports

Product Overview Availability Advertised Price
StarTech.com 10 ft Ultra-Thin PS/2 3-in-1 KVM Cable
in-1 Ultra Thin PS/2 KVM Cable - Keyboard / video / mouse (KVM) cable - 6 pin PS/2, HD-15 (M) - HD-15 (M) - 10 ft - ... more
Availability
Orders placed today will ship within 3 days.
1-3 days
$18.94
Qty

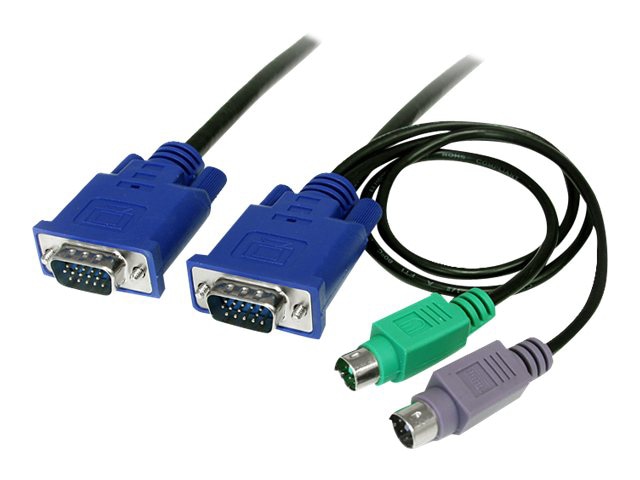

StarTech.com 3-in-1 Ultra Thin PS/2 KVM Cable - keyboard / video / mouse (K
in-1 Ultra Thin PS/2 KVM Cable - Keyboard / video / mouse (KVM) cable - 6 pin PS/2, HD-15 (M) - HD-15 (M) - 6 ft - ... more
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$14.95
Qty
StarTech.com 10 ft Ultra-Thin USB 2-in-1 KVM Cable
in-1 - Video / USB cable - 4 pin USB Type A, HD-15 (M) - HD-15 (M) - 10 ft - black
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$19.94
Qty
Product Overview
Main Features
  • KVM switch
  • PS/2
  • 4 ports
  • 1 local user
  • 1 IP user
  • 1U
  • rack-mountable
  • cascadable
This Digital IP KVM Switch offers secure and flexible local and remote administration of critical systems and services, combining StarTech.com's dependable Server Remote Control technology with a proven Enterprise-class digital KVM switch.

Unlike software solutions that require installation and work through your server operating system, this easy-to-configure IP KVM Switch delivers BIOS level control and full interaction with connected system boot processes over a TCP/IP connection. Users can reboot the system, access the BIOS and have full control over the keyboard and mouse as if they are on site - a cost-effective solution for outsourced server/IT hardware management and access to mission-critical corporate datacenter servers.

Remote Control can't come at the expense of security! This Digital IP KVM switch features built-in support for SSH tunneling, SSL encryption and RADIUS authentication, as well as a configurable firewall. Plus, access to the IP KVM web console is user ID and SSL password secured to prevent unauthorized access.

A scalable KVM control solution, the IP KVM Switch supports up to 4 directly-connected servers or workstation computers. To create a more flexible infrastructure, the switch can be cascaded with other existing/new KVM switches for remote control of up to 16 computers from this single IP KVM unit. To provide broader control options, the IP KVM switch supports modular integration, allowing you to add capability to your existing server remote control infrastructure. Using StarTech.com's Serial Remote Control Module (RPORT) for example, you can interact with virtually any device that uses a RS-232 serial terminal interface (network routers, switches, environmental controls, alarm systems etc.). Similarly, the IP KVM switch can be connected to StarTech.com's 8 Outlet Remote Power Switch (PCM815SHNA) to power computers and equipment on and off using an interactive menu.

Designed to accommodate a wide range of operating environments, the Digital IP KVM switch is compatible with PC, Mac and Sun Servers/Systems, ensuring the flexibility needed to efficiently manage connected devices regardless of operating platform. To provide further versatility, the switch supports computers with USB or PS/2 keyboard and mouse connectors allowing a broader mix of connected computers including both legacy (PS/2) and modern (USB).

To preserve valuable server room or work space, the IP KVM can be mounted into 1U of rack/cabinet space. Similarly, all external connections to the server remote control/KVM unit are located on the rear panel to eliminate cable tangles and mess.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Cables (Details)
Form Factor: External
Included Qty: 1
Service & Support
Type: 1 year warranty
Bay Required
Type: None
Cable
Connectivity Details Type: Serial cable
Header
Compatibility: Mac , PC , Unix
Manufacturer: StarTech.com
Model: SV441HDIE
Packaged Quantity: 1
Product Line: StarTech.com Enhanced KVM Switch Over IP
Interface Provided
Connector Type: 15 pin HD D-Sub (HD-15)
Qty: 4
Type: Keyboard / video / mouse (KVM)
Connector Type: 9 pin D-Sub (DB-9)
Gender: Male
Interface: RS-232
Qty: 1
Type: Management
Interface Required
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Total Qty: 1
Type: Display / video
Connector Type: 6 pin mini-DIN (PS/2 style)
Interface: Generic
Type: Keyboard
Type: Mouse
Connector Type: RJ-45
Type: Keyboard / video / mouse (KVM)
KVM
Keyboard Mouse Interface: PS/2
KVM Features: IP-based user connection
KVM IP Users Qty: 1 IP user
KVM Local Users Qty: 1 local user
KVM Max Supported Video Resolution: 1600 x 1200
KVM V-Sync Rate At Max Resolution: 85 Hz
Miscellaneous
Authentication Method: RADIUS , Secure Shell (SSH)
Color: Black
Compliant Standards: CE , FCC , Plug and Play , RoHS
Encryption Algorithm: SSL
Height (Rack Units): 1
Networking
Connectivity Technology: Wired
Features: DHCP support , Firmware upgradable , Syslog support , VNC support
Form Factor: Rack-mountable
Ports Qty: 4
Remote Management Protocol: HTTP , HTTPS , SNMP , VNC
Stackable: Cascadable
Subcategory (FE): KVM
Type: KVM switch
Power Device
Form Factor: External
Power Consumption Operational: 18 Watt
Type: Power adapter
Service
Support Details Full Contract Period: 1 year
Support Details Type: Limited warranty
Slot Provided
Type: None
Slot Required
Type: None
Dimensions & Weight
Depth: 7.3 in
Height: 1.7 in
Weight: 5.5 lbs
Width: 8.9 in
