StarTech.com 8 Port 1U Rack Mount USB PS/2 Cat5 UTP KVM Switch View Photo Gallery

StarTech.com 8 Port 1U Rack Mount USB PS/2 Cat5 UTP KVM Switch

Mfg. Part: SV831DUTP  |  CDW Part: 1451830  |  UNSPSC: 43211604
Log On to Email this Page or
Add to Favorites.




KVM switch - CAT5 - 8 ports - 1 local user - 1U - rack-mountable - stackable - instant rebate from September 2 to November 28th. REBATE- 50.00
Main Features
Qty
$342.13
Advertised Price
$69.82
Advertised Price
Recommended Warranty: 2 Extra Years Replacement Extended Warranty $201-$400  |  See all warranties

Availability:
Availability
Call for availability.
Call
Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • KVM switch
  • CAT5
  • 8 ports
  • 1 local user
  • 1U
  • rack-mountable
  • stackable
  • instant rebate from September 2 to November 28th. REBATE- 50.00
N/A This 8 port Cat5 KVM switch lets you manage all of your computers from one convenient location over UTP (Cat5) cable, using only one keyboard, mouse, and monitor.

In place of more "traditional" KVM switches which use DB15 cable to connect slave computers to the switch, this Cat5 KVM switch utilizes Category 5 UTP cable to link the computers, reducing cable clutter and extending the available connection distance to up to 130ft (39.6m).

To ensure simple and convenient operation, the KVM Switch features both pushbutton and hot-key commands and offers manual and automatic scan modes that provide hassle-free monitoring of computer connection status.

This Cat5 KVM switch is cascadable, allowing multiple Cat5 KVM units to be linked together for control of up to 256 computers from a single KVM (keyboard, video, mouse) peripheral set - providing a scalable control platform that can grow to accommodate your needs.

For simple integration into any server room or data center, this 8 port Cat 5 KVM switch can be rack mounted, and requires only 1U of cabinet storage space.

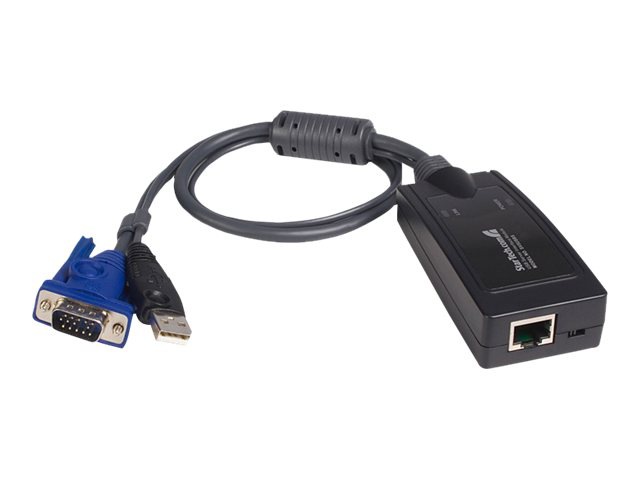

The following interface modules are required for host connectivity: SV5USBS - USB Server Interface Module, SV5PS2S - PS/2 Server Interface Module.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Required
Type: None
Environmental Parameters
Humidity Range Operating: 0 - 80%
Max Operating Temperature: 122 °F
Min Operating Temperature: 32 °F
Header
Compatibility: Mac , PC
Manufacturer: StarTech.com
Model: 8 Port 1U Rack Mount USB PS/2 Cat5 UTP KVM Switch
Packaged Quantity: 1
Product Line: StarTech.com
Interface Provided
Connector Type: RJ-45
Qty: 8
Type: Keyboard / video / mouse (KVM)
Connector Type: 25 pin D-Sub (DB-25)
Gender: Male
Qty: 1
Type: Network stack device
Gender: Female
Interface Required
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Total Qty: 1
Type: Display / video
Connector Type: 6 pin mini-DIN (PS/2 style)
Interface: Generic
Type: Keyboard
Type: Mouse
KVM
Keyboard Mouse Interface: PS/2
KVM Features: Server connection via twisted pair
KVM Local Users Qty: 1 local user
KVM Max Supported Video Resolution: 1600 x 1200
KVM V-Sync Rate At Max Resolution: 60 Hz
Server Connection Via Twisted Pair: CAT5
Miscellaneous
Color: Black
Compliant Standards: CE , FCC , RoHS , UL
Height (Rack Units): 1
Rack Mounting Kit: Included
Networking
Connectivity Technology: Wired
Features: Firmware upgradable , On-Screen Display
Form Factor: Rack-mountable
Ports Qty: 8
Stackable: Stackable
Status Indicators: Port status
Subcategory (FE): KVM
Type: KVM switch
Power Device
Form Factor: External
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 25 Watt
Type: Power adapter
Service
Support Details Full Contract Period: 1 year
Support Details Type: Limited warranty
Slot Provided
Type: None
Slot Required
Type: None
Dimensions & Weight
Depth: 6.3 in
Height: 1.7 in
Weight: 6 lbs
Width: 17.2 in
Service & Support
Type: 1 year warranty
