StarTech.com 3.5in Silver 4 Drive eSATA Multi RAID External Hard Drive Encl

StarTech.com 3.5in Silver 4 Drive eSATA Multi RAID External Hard Drive Encl

Mfg. Part: SAT3540ER  |  CDW Part: 1584610  |  UNSPSC: 43201802

This product was discontinued as of Monday, August 02, 2010. Call for availability.
Hard drive array - 4 bays ( SATA-300 ) - 0 x HD - Serial ATA-300 (external)
Main Features
Log On to Email this Page or
Add to Favorites.





Looking for a replacement?
Consider one of these or find similar items
StarTech.com 3.5 4 Drive eSATA RAID Hard Drive Enclosure w/ Controller - ha
$209.47
Product Overview
Technical Specs
Accessories

Compatible Accessories for StarTech.com 3.5in Silver 4 Drive eSATA Multi RAID External Hard Drive Encl

Product Overview Availability Advertised Price

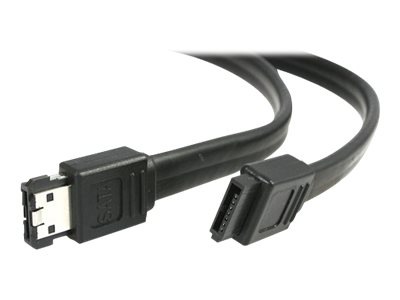

Startech.com 3 Ft Shielded External eSATA Cable M/M
3 Ft Shielded External eSATA Cable M/M
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$7.97
Qty
StarTech.com Shielded External eSATA Cable - Serial ATA external cable - 6
Serial ATA external cable - Serial ATA 150 - 7 pin external Serial ATA (M) - 7 pin external Serial ATA (M) - 6 ft - ... more
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$11.96
Qty
StarTech.com Shielded eSATA to SATA Cable - Serial ATA internal to external
Serial ATA internal to external cable - 7 pin Serial ATA - 7 pin external Serial ATA - 6 ft - black
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$10.96
Qty
Product Overview
Main Features
  • Hard drive array
  • 4 bays ( SATA-300 )
  • 0 x HD
  • Serial ATA-300 (external)
This eSATA External RAID HDD Enclosure/Mobile Rack delivers a high performance external RAID solution that lets you install up to four SATA hard drives for connection to the host computer through eSATA.

The 4 drive mobile rack automatically configures your RAID array based on your selection (Spanning, RAID 0, RAID 1, RAID 0+1 as well as JBOD arrays supported), delivering a simple yet flexible RAID storage solution. With support for up to four 2TB SATA hard drives (maximum combined capacity 8 Terabytes), the enclosure features individual removable drive trays that make hot swapping or interchanging failed or extra hard drives easy.

An economical external storage solution, the enclosure supports any 3.5in SATA hard drive, allowing you to customize the storage appliance based on your preference of hard drive manufacturer. To ensure a safe and sturdy operating environment for installed hard drives, the enclosure features a built-in 80mm ball bearing fan that enhances hard drive cooling, and offers a high quality aluminum body and attractive front panel design. An out-of-the box external RAID solution, the storage appliance includes the companion PCI Express SATA controller card (with port multiplier support), as well as an eSATA cable and the necessary power adapter.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Cabinet (Chassis)
Supported Devices Modules Qty: 4
Supported Interface: Serial ATA-300
Cables (Details)
Included Qty: 1
Optical Storage
Type: None
System Requirements
Min Operating System: Apple MacOS 9.x or later , Linux 2.4.1 or later , Microsoft Windows Vista / 2000 / XP
Peripheral Interface Devices: CD-ROM
Bay Provided
Form Factor: 3.5"
Form Factor (metric): 8.9 cm
Free Qty: 4
Total Qty: 4
Type: Hot-swap
Cabinet
Chassis Built-in Devices: LED panel
Cable
Connectivity Details Type: eSATA cable
Header
Compatibility: Mac , PC
Manufacturer: StarTech.com
Model: 3.5in Silver 4 Drive eSATA Multi RAID External Hard Drive Enclosure
Packaged Quantity: 1
Product Line: StarTech.com
Interface Provided
Connector Type: 7 pin external Serial ATA
Interface (Storage): eSATA-300
Qty: 1
Miscellaneous
Color: Silver
Compliant Standards: CE , FCC , RoHS , UL
Included Accessories (CI): eSATA PCIe controller
Mounting Kit: Included
Power Device
Form Factor: External
Frequency Required: 50 - 60 Hz
Nominal Voltage: AC 120/230 V
Power Provided: 100 Watt
Type: Power adapter
Processor
Type: SiI4726
Service
Support Details Full Contract Period: 1 year
Support Details Type: Limited warranty
Software
Type: Drivers & Utilities
Storage
HDD Array External Interface: Serial ATA-300
HDD Array External Interface Class: Serial ATA
Max Supported Capacity: 8 TB
Type: Hard drive array
Storage Controller
Channel Qty: 4
Controller Interface Type: Serial ATA-300
Data Transfer Rate: 300 MBps
RAID Level: JBOD , RAID 0 , RAID 0+1 , RAID 1
Supported Devices: Disk array (RAID) , Hard drive
Type: RAID
Storage Controller (2nd)
Type: None
Storage Hard Drive
Enclosure Type: Plug-in module
Installed Qty: 0
Interface Type: Serial ATA-300
Type: Hot-swap
Storage Hard Drive (2nd)
Type: None
Dimensions & Weight
Depth: 9.1 in
Height: 5.7 in
Weight: 7.5 lbs
Width: 6.7 in
Service & Support
Type: 1 year warranty
