All Categories  > Cables  > Audio/Video Switch Boxes  > IOGEAR 2 Port VGA Video Splitter and Extender
IOGEAR 2 Port VGA Video Splitter and Extender View Photo Gallery

IOGEAR 2 Port VGA Video Splitter and Extender

Mfg. Part: GVS92  |  CDW Part: 469083  |  UNSPSC: 43211604

This product was discontinued as of Tuesday, March 16, 2010. Call for availability.
2 Port VGA Video Splitter for use with analog displays
Main Features
Log On to Email this Page or
Add to Favorites.





Product Overview
Technical Specs
Accessories

Compatible Accessories for IOGEAR 2 Port VGA Video Splitter and Extender

Product Overview Availability Advertised Price

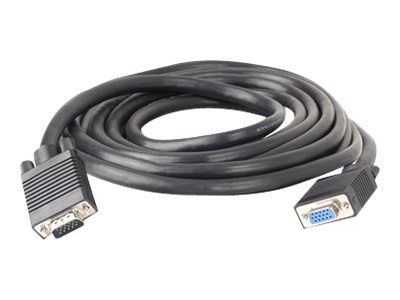

ATEN VGA Extension Cable, 1.8M (6Ft)
VGA Extension Cable, 1.8M (6Ft)
Availability
Orders placed today will ship within 3 days.
1-3 days
$18.94
Qty
Product Overview
Main Features
  • 2 Port VGA Video Splitter for use with analog displays
Superior video quality, maintains highest signal strength in all applications up to 1920 x 1440 The Video Splitter is a signal booster and splitter that is used to take video input from a single source and direct it to two video outputs for monitors using analog signals. The signal boost obtained by using the GVS92 allows you to not only split the signal but to extend the distance so that you can send the signal to about 215 feet away. This is no small feat, your average VGA card, over a standard VGA cable, sends a clear VGA signal approximately 25 feet. Dividing this between other displays reduces the video quality. This is why IOGEAR's video splitter is the best choice for allowing you to carry and split the video signal to more that one display with the same quality as the original signal.

Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a givin signal. For example a voice telephone signal has a bandwidth of 3000Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call. These units have a bandwidth of 250MHz (which is 250 million cycles per second) and that is 40 times greater than a simple TV signal. The high bandwidth allows for the transmission of large amounts of information at a very high rate of speed, thus allowing for the use of high resolution settings upwards of 1920 x 1440 in 24 or 32 bit true color mode.

Features:
Ultra High 250MHz Bandwidth
Superior video quality, maintains highest signal strength in all applications up to 1920 x 1440
Amplifies video signals increasing transmission distance up to 215 feet
Supports up to 2 VGA monitors
Daisy chainable; allows you to expand your video splitter set up beyond 2 displays
Hassle free, no software to install, instant installation and use.
Hot plug capability, Hot swappable, Plug-N-Play
Compact design for easy placement
All metal housing
Supports DDC, DDC2, DDC2B at Port 1
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
KVM
KVM Max Supported Video Bandwidth: 250 MHz
KVM Max Supported Video Resolution: 1920 x 1440
KVM V-Sync Rate At Max Resolution: 60 Hz
Service & Support
Type: 3 years warranty
Bay Required
Type: None
Environmental Parameters
Humidity Range Operating: 0 - 80%
Max Operating Temperature: 104 °F
Min Operating Temperature: 41 °F
Header
Compatibility: Mac , PC
Manufacturer: iogear
Model: 2 Port Video Splitter GVS92
Packaged Quantity: 1
Product Line: IOGEAR
Interface Provided
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Qty: 2
Type: Display / video
Interface Required
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Total Qty: 1
Type: Display / video
Networking
Connectivity Technology: Wired
Form Factor: External
Ports Qty: 2
Subcategory (FE): Peripheral sharing and hubs
Type: Video splitter
Power Device
Form Factor: External
Power Consumption Operational: 0.85 Watt
Type: Power adapter
Service
Support Details Full Contract Period: 3 years
Support Details Type: Limited warranty
Slot Provided
Type: None
Slot Required
Type: None
Dimensions & Weight
Depth: 5 in
Height: 1.5 in
Weight: 0.7 lbs
Width: 3 in
