AXIS 215 PTZ Network Camera View Photo Gallery

AXIS 215 PTZ Network Camera

Mfg. Part: 0274-004  |  CDW Part: 1236137  |  UNSPSC: 46171610
Log On to Email this Page or
Add to Favorites.




PTZ Network Camera
Main Features
Qty
$989.51
Advertised Price
Lease Option
Leasing
Please see cdw.com/leasing for more information.
($31.47 /month)
$59.84
Advertised Price
Recommended Warranty: 2 Extra Years Consumer Electronic Extended Warranty $751-$1000  |  See all warranties

Availability:
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • PTZ Network Camera

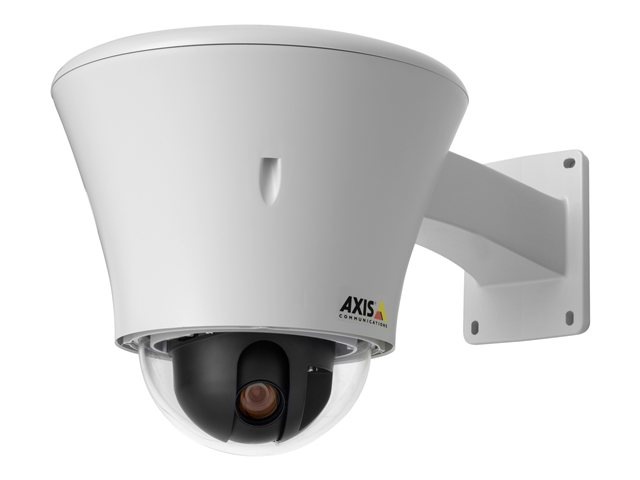

AXIS 215 PTZ Network Camera is a day and night camera that offers pan/tilt/zoom control over IP networks. It has a compact, tamper-proof design providing protection against tampering as all moving parts are inside the casing.

The camera is the perfect choice for indoor environments such as shops, receptions, banks and other facilities, where you need both an overview and the possibility to zoom in for detailed inspections. The total zoom capacity of 48x increases the monitoring options with the ability to show a detailed and precise view of the zoomed in area.

Traditional PTZ cameras have a mechanical stop that prevents the cameras’ circular movement making it impossible to follow a person walking in a full circle around the camera. Thanks to the Auto-flip functionality developed by Axis, AXIS 215 PTZ can instantly flip the camera head 180 degrees and continue to pan beyond its zero point. The camera can then continue to follow a passing person or object, regardless of the direction.

When a person passes below the camera, the image will be upside-down after 90 degrees tilt. With other PTZ camera models, the operator must rotate the image 180 degrees but with the E-flip functionality, AXIS 215 PTZ can automatically flip the image electronically 180 degrees, and continue to follow the person in the correct orientation, without delay.

Features:
Pan, tilt and zoom control over IP network
360 degree pan with Auto-flip
48x total zoom, 12x optical and 4x digital
Day/Night function with removable IR filter
Two-way audio, including audio detection alarm
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Video Input
Camera Type: Network camera
Color or B&W: Color
Digital Video Format: MJPEG , MPEG-4
Digital Zoom: 4
Features: Auto exposure control , Brightness control , Color control , Digital image freeze , Image flip , IR filter , Motion sensor , Sharpness control , White balance
Focus Adjustment: Automatic
Lens Aperture: F/1.6-2.7
Max Focal Length: 46 mm
Min Focal Length: 3.8 mm
Min Focus Range: 11.8 in
Optical Zoom: 12
Shutter Speed (Max): 1/50000 sec
Shutter Speed (Min): 1.3 sec
Still Image Format: JPEG
Interface Required
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Total Qty: 1
Type: Network
Connector Type: Mini-phone 3.5 mm
Interface: Line-in/microphone
Type: Audio
Interface: Line-out
Optical Sensor
Optical Sensor Size: 1/4"
Optical Sensor Size (metric): 6.4 mm ( 1/4" )
Optical Sensor Type: CCD
System Requirements
Min Operating System: Microsoft Windows 2000 / XP
Peripheral Interface Devices: AGP graphics card with 32MB of memory
Environmental Parameters
Humidity Range Operating: 20 - 80%
Max Operating Temperature: 113 °F
Min Operating Temperature: 32 °F
Header
Compatibility: PC
Country Kits: United States
Manufacturer: Axis Communications
Model: 215 PTZ Network Camera
Packaged Quantity: 1
Product Line: AXIS
Miscellaneous
Compliant Standards: AS/NZS 3548 , C-Tick , CE , CSA , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B , UL
Included Accessories (DG): Ceiling mount kits , Clear and smoked domes
Power Device
Form Factor: External
Power Consumption Operational: 14.5 Watt
Type: Power adapter
Service
Support Details Full Contract Period: 3 years
Support Details Type: Limited warranty
Slot Required
Type: None
Software
Type: Drivers & Utilities
System Requirements Details
Min RAM Size: 128 MB
Operating System: Windows 2000/XP
Processor Speed: 500 MHz
Processor Type: Pentium III
Dimensions & Weight
Depth: 5.2 in
Height: 5 in
Weight: 1.6 lbs
Width: 6 in
CCTV
Alarm Inputs Qty: 1
Alarm Outputs Qty: 1
Angular Field of View (H, max, degree): 51.6
Angular Field of View (H, min, degree): 4.4
Audio Support: Yes
Audio Support Features: Two-way audio capability
Camera Mechanical Design: Pan / tilt / zoom
Day & Night Functionality: Yes
Equipment Category: CCTV cameras
Focal Length Control: Motorized zoom
Lens Iris: Auto iris
Max Digital Video Resolution: 704 x 480
Max Panning Speed (degree/sec): 180
Max Tilting Speed (degree/sec): 140
Network Interface: Ethernet 10Base-T/100Base-TX
Network Protocols: ARP , Bonjour , DDNS , DHCP , FTP , HTTP , HTTP over SSL , ICMP , NTP , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , TCP/IP , UDP/IP
Panning Range (degree): -170 to +170
Protection: Tamper-proof
Tilting Range (degree): 0 to 180
Video Format: NTSC
CCTV Camera Sensitivity
F-number: F1.6
IRE: 30
Minimum Illumination (lux): 1
Mode: Color
Minimum Illumination (lux): 0.3
Mode: B&W
Flash Memory
Installed Size: 8 MB
RAM
Installed Size: 32 MB
Service & Support
Type: 3 years warranty
