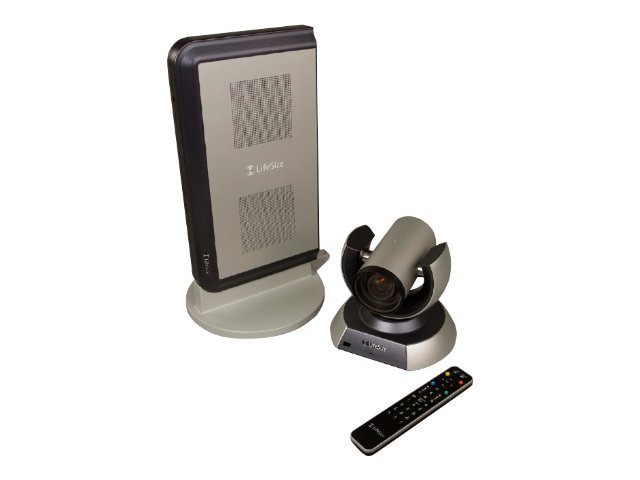

LifeSize Room 220 - video conferencing kit - with LifeSize Camera 10x

Mfg. Part: 1000-000D-1134 | CDW Part: 2244109 | UNSPSC: 45111902
Request PricingCall

This item was discontinued on January 4, 2013.

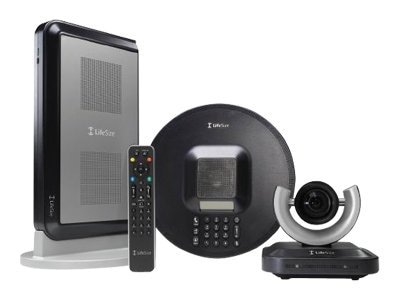

Looking for a replacement? Consider...LifeSize Room 220 - video conferencing kitCallAdvertised Price

Sales Assistance

800.808.4239 Mon-Fri 7am-7:30pm CT

Answer within 24 hours.


Have leasing questions? Let us know how can we help.

Note: Leasing is available to organizations only. Leasing is not available to individuals.
Mon-Fri 7am-7:30pm CT
  • Video conferencing kit
  • with LifeSize Camera 10x
View More
Product Overview
Main Features
  • Video conferencing kit
  • with LifeSize Camera 10x
With LifeSize Room 220, you get the highest level of quality available today - full high definition, standards-based 1080p30 for the highest resolution on the market and 720p60 for the best motion handling with lower latency. But, LifeSize Room 220 comes standard with an embedded 8-way continuous presence multipoint bridge showing 4 visible sites, complete with transcoding and all digital I/O. Plus, LifeSize Room 220 also has a point-to-point throughput of 8Mbps. And the compact, sleek unit is less than half the size of comparable solutions.

One look and you can see for yourself that the LifeSize difference is the LifeSize experience - superior video communications across cities, countries and continents.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Audio Input
Form Factor: External
Type: Microphone

Audio Output
Type: Speaker(s)

Connectivity Details Length: 10 ft
Connectivity Details Type: HDMI cable

Environmental Parameters
Humidity Range Operating: 15 - 85%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F

Bundled with: Lifesize Camera 10x
Compatibility: PC
Manufacturer: LifeSize Communications
Model: 220
Packaged Quantity: 1
Product Line: Lifesize Room

Input Device
Connectivity Technology: Wireless
Type: Remote control

Interface Provided
Interface: Input
Qty: 1
Type: Camera

Connector Type: 19 pin HDMI Type A
Interface: HDMI input
Qty: 2
Type: Audio / video

Interface: DVI-Analog/Digital input
Type: Display / video

Interface: Component video input

Interface: Composite video input

Interface: S-video input

Interface: HDMI output

Interface: DVI-Analog/Digital output

Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Type: Network

Connector Qty: X 2
Connector Type: Mini-phone 3.5 mm
Interface: Line-in
Type: Audio

Type: Microphone

Connector Type: Mini-phone stereo 3.5 mm
Interface: Line-out

Connector Type: 9 pin D-Sub (DB-9)
Interface: RS-232
Type: Management

Connector Type: 4 pin USB Type A
Type: USB

Connector Type: RJ-11
Type: Phone line

Compliant Standards: AES

Connectivity Technology: Wired
Data Compression Protocol: G.711 , G.722 , G.722.1 , G.722.1C , G.728 , G.729 , H.261 , H.263 , H.263+ , H.264
Digital Signaling Protocol: H.239 , H.323 , SIP
Features: Auto gain control , Echo cancellation

Connectivity Technology: Wired
Data Link Protocol: Ethernet , Fast Ethernet
Features: Firewall protection , IPv6 support , LDAP support , NAT support , Power over Ethernet (PoE) , SSH support
Type: Network adapter

Power Device
Form Factor: External
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Power adapter

Conferencing System Type: Video conferencing kit

Video Input
Digital Video Capture Resolution: 1280 x 720 , 1920 x 1080
Form Factor: External
Interface Type: HDMI
Type: Digital video camera

Video Output
Digital Video Standard: Digital Visual Interface (DVI) , High-Definition Multimedia Interface (HDMI)
Form Factor: External
Max External Resolution: 1920 x 1080
Supported Display Graphics: 1280x720 , HDTV (1920x1080)
Type: Codec board

Cable Details
Included Qty: 1

Dimensions & Weight
Depth: 8.9 in
Height: 1.9 in
Weight: 4.9 lbs
Width: 14.7 in
