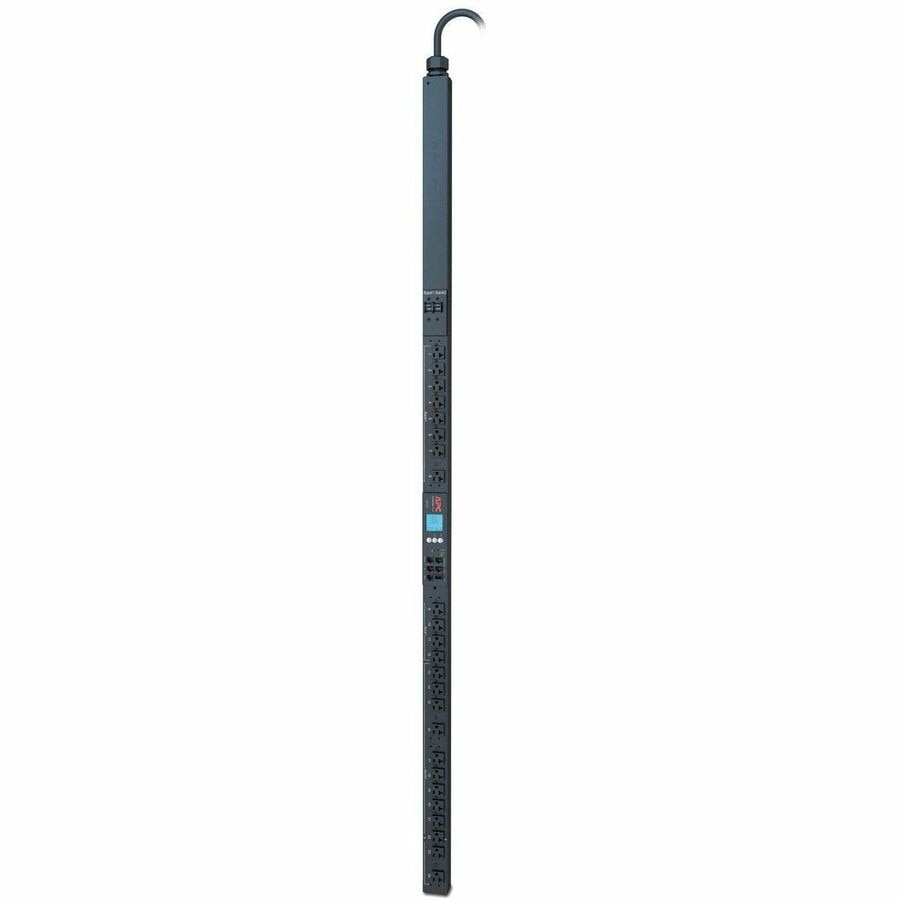

APC NetShelter Rack PDU, Switched, 0U, 2.9kW 100V-120V 30A, (24) NEMA 5-20R outlets
Quick tech specs
- Ideal for Colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Power sequencing delays determine the order in which power is turned on or off
- Zero U toolless installation
- Remote management of rack PDUs for efficient time-saving
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top of potential circuit overloads with user-defined alarms
Know your gear
The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The AP8932US offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. The 0U PDU includes a NEMA L5-30P input plug with 3m (9.84 ft) cord, and (24) NEMA 5-20R output receptacles. The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface. Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets. The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address. The rack PDU comes with a standard two-year warranty. The switched PDU is compliant with the Trade Agreements Act (TAA) requirements.
