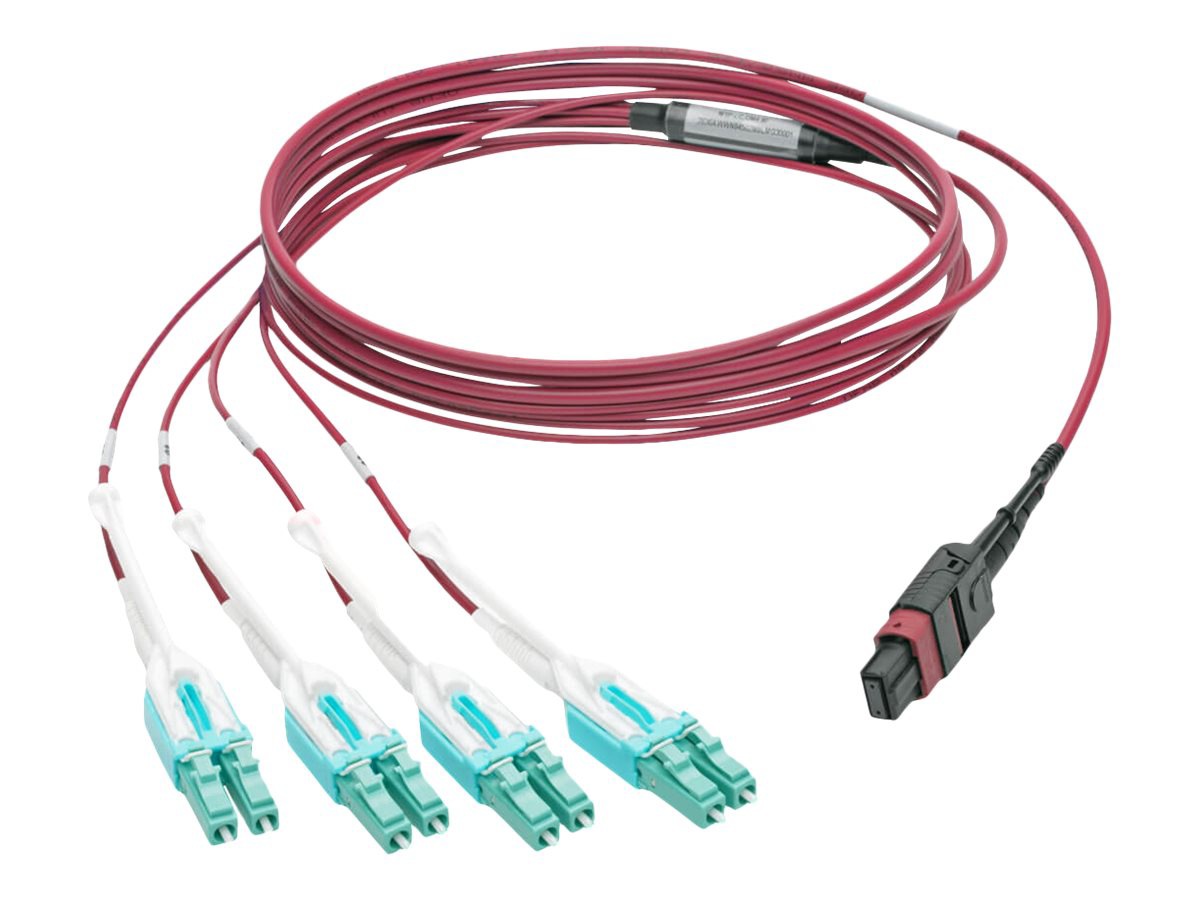

Eaton Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs,
$371.21
$242.38
Mfg # N845-03M-8L-MG
CDW # 4372534
| UNSPSC 26121607
Quick tech specs
- Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m
- MTP/MPO multi-mode (M) to LC multi-mode (M)
- 3 m
- OM4
- magenta
- Patch cable
- 3 m
- fiber optic
- plenum
Know your gear
OM4-Rated for 40 Gb Ethernet Applications
? Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch
? Designed for high-density connections between 40GBASE-SR4 network equipment
? Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
? Multimode fiber optic fan-out cable supports various multi- and single-fiber connections.
? Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction
? Magenta-colored for identification as an OM4 cable
MTP/MPO and LC Connectors with Push/Pull Tabs
? 1 male MTP/MPO and 8 male LC connectors
? Push/pull tab connectors easy to install and remove with one hand
Error-Free Signal Transfer
? Premium-grade ceramic ferrule for 10 GbE and faster applications
? Slim, space-saving uniboot design makes cable easier to manage
? Plenum-rated jacket for connecting in ceilings, walls and ducts
? Sturdy plastic housing built to last a long time.
? Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch
? Designed for high-density connections between 40GBASE-SR4 network equipment
? Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
? Multimode fiber optic fan-out cable supports various multi- and single-fiber connections.
? Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction
? Magenta-colored for identification as an OM4 cable
MTP/MPO and LC Connectors with Push/Pull Tabs
? 1 male MTP/MPO and 8 male LC connectors
? Push/pull tab connectors easy to install and remove with one hand
Error-Free Signal Transfer
? Premium-grade ceramic ferrule for 10 GbE and faster applications
? Slim, space-saving uniboot design makes cable easier to manage
? Plenum-rated jacket for connecting in ceilings, walls and ducts
? Sturdy plastic housing built to last a long time.
