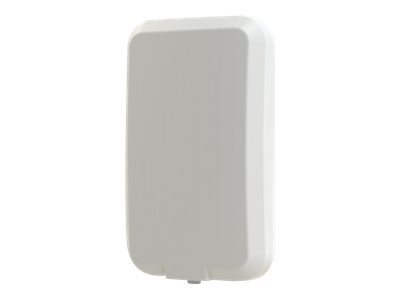

Panorama Antennas Directional 2x2MiMo 4G/5G Antenna with GNSS
Mfg # WMM2GG-6-60-5SP
CDW # 7751115
| UNSPSC 43221706
Quick tech specs
- Designed to operate at 617 MHz to 960 MHz frequency
- Provides gain of up to 26 dB
- With its wall mounting feature,you can conveniently install the antenna while keeping the wires and cables organized
- With its strong connection and faster transfer speeds,this cellular network provides the best reception
- With its directional feature,this antenna only picks up signals from a given direction,hence reducing interference levels
Know your gear
2x2 MiMo High Gain Directional Antenna for 4G/5G, Frequency range 617-960/1710-6000MHz, Integrated High Performance GPS/GNSS Antenna Module, Suitable for wall or mast mounting,The WMM2GG-6-60 is a high gain directional 2x2 MiMo antenna for 4G and 5G networks. It incorporates two wideband element assemblies in a single housing and is designed to support fixed site client devices. It offers 6dBi peak gain for 617- 960MHz and 9dBi peak gain for 1710-6000MHz.The antenna also includes an active, high performance GPS/GNSS antenna module with advanced filtering to give satellite acquisition resilience when used in LTE B13/14 and enables the user to have real time location of their asset.The weather resistant housing is designed for wall or mast mounting with the supplied hardware.The standard WMM2GG-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminates exposed connector joints and simplifies the installation process.The WMM2GG-6-60-05NJ version has 50cm length cables, fitted with N type jack, which is ideal for installations that require a longer cable run, where Panorama's CS240 or CS400 type coaxial cable can be used to minimise the cable insertion loss.The WMM2GG-6-60 is a value added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates for the subscriber, resulting in customer satisfaction and retention.
