- Serial Impact
- Up to 15 cpi
- Up to 360 x 360 dpi

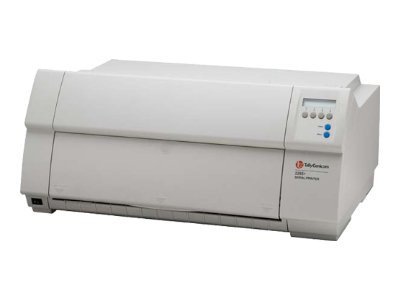

At top speeds of 900 cps the 2265+/2280+ keep pace with the bustling, demanding world where printing is time sensitive and critical. Engineered for printing under adverse conditions, these devices produce multi-part invoices, shipping documents or bar code labels at a rate of 40,000 pages per month.
For the most flexible paper handling, the 2280+ may be optionally configured with three input tractors (two front and one rear), while the 2265+ can be configured with two front tractors. Straight paper path on the front tractors of the 2265+/2280+ result in jam-free operation and flawless 24-wire impressions on up to 6-part forms. The 2265+/2280+ offers fully automated gap adjustment, paper parking, and loading.
Ideal For Many Markets & Applications.
Federal, State & Local Government- Print tax forms, payroll checks, expense reports, inventory reports, invoices. Manufacturing, Transportation, & Distribution - Print pick lists, shipping labels and freight bills. Excellent readability on all industry standard bar codes, including POSTNET.
Print Speed: At 10, 12, 15 cpi: Draft 650, 720, 900; NLQ 200, 240, 300; LQ 100, 120, 150
Print Method: Serial Impact
Resolution: 360 x 360 dpi
Throughput: 606 pages per hour (ECMA 132)
Character Density: 5, 6, 7.5, 8.6, 10, 12, 15, 17.1, 20
cpi (Emulation dependent)
Line Density: 2, 3, 4, 6, 8, 12 lpi
Printhead Life: 500 M Characters (draft)
Printhead Type: 24 wire
Standard Connectivity: Bi-directional Centronics Parallel
Standard Emulation: IBM® Proprinter XL24e, Epson® LQ-2550,
Epson® LQ-2170 (ESC P/2), MTPL
Fonts: Draft, Copy Draft, Courier, Roman, Sans Serif, OCR
A, OCR B, 15 Bar Codes & scaleable LCP fonts.
Consumables: 20 M Character Ribbon
STD Paper Handling: Front insertion, Push tractor with
paper parking and AGA
Number of Copies: Original + 5 (6-part forms); with High
Impact Print Head Model - Original +8 (9 part forms)
Paper Type: Continuous paper, cut sheets (optional feeder)
Paper Size: Paper: Length: 4" min, 14" max; Width: 4" min,
Physical Weight: 42 lbs
Physical Size: 24.5" x 10.9" x 16.9"
Power Voltage: AC 230V and 120V (selectable)
Power Frequency: 50/60Hz
Power Consumption: 60 Watts
Compliance: Energy Star compliant, Ozone-free. RoHS,
Microsoft, ISO-compliant, Meditech Approved
Workload Up to 40,000 pages per month
Reliability MTBF 10,000 hours @ 100% duty cycle
Drivers Windows XP, Server 2003, 2000, 95/98/ME, NT 4.0,
Temperature: +10ºC to +35ºC
Humidity: 5% to 85% (relative humidity)
Acoustic: 53 dB (ISO 7779)
Warranty: 90 days limited on-site coverage plus nine
