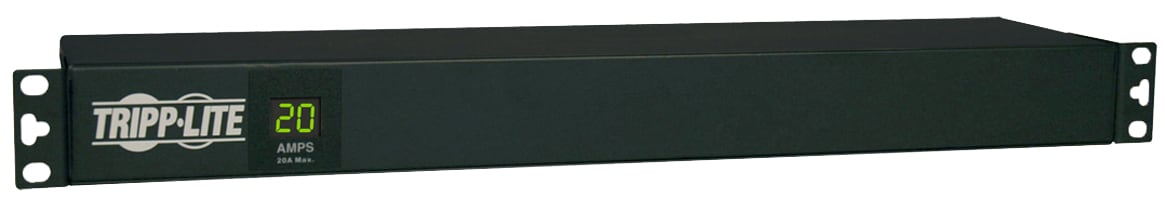

Tripp Lite PDU Single Phase Basic Horizontal 200/240V 5.8kw 16 C13 4 C19

Mfg.Part: PDU1230 | CDW Part: 759513 | UNSPSC: 39121017
Availability: In Stock
Order fulfilled by a CDW partner.
Warranties
Was $329.56
$214.45 Advertised Price
Advertised Price
Product Details
  • Basic rack-mountable PDU delivers 200/208/240V single-phase AC power to multiple loads
  • PDU / Power Distribution Unit / Horizontal PDU / PDU Strip / Basic PDU / rack pdu / pdus / datacenter pdu / data center pdu / network pdu / networking pdu
  • NEMA L6-30P input with 15ft. cord
  • 20 outlets (16 C13 4 C19) 208/240V 30A 4.8/5.8kW
  • Switchless design prevents accidental shutdown
  • Installs in rack on wall or under counter
  • Mounts horizontally in 1U of 19 in. 2- and 4-post racks
View Full Product Details
Better Together
Tripp Lite PDU Single Phase Basic Horizontal 200/240V 5.8kw 16 C13 4 C19
Quick View
Total Price:

Product Overview

Main Features
  • Basic rack-mountable PDU delivers 200/208/240V single-phase AC power to multiple loads
  • PDU / Power Distribution Unit / Horizontal PDU / PDU Strip / Basic PDU / rack pdu / pdus / datacenter pdu / data center pdu / network pdu / networking pdu
  • NEMA L6-30P input with 15ft. cord
  • 20 outlets (16 C13 4 C19) 208/240V 30A 4.8/5.8kW
  • Switchless design prevents accidental shutdown
  • Installs in rack on wall or under counter
  • Mounts horizontally in 1U of 19 in. 2- and 4-post racks
3 10A and 2 15A circuit breakers

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 2 front-panel C19 outlets, each protected by separate 15A circuit breakers, and 12 rear-panel C13 outlets protected in banks of 4 by 3 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 2 front-facing and 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes grounding lug and rugged all-metal case design.



Features:

Corded AC power distribution unit with L6-30P input plug, 2 C19 outlets (front) and 12 C13 outlets (rear)



Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19-inch rackmount mounting in both 1U or 0U formats



Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure



Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment



Attractive all-metal housing measures only 4.5 inches in depth



Switch-free design prevents the potential for accidental shutoff of connected loads



5 built-in circuit breakers: 2 15A breakers cover 2 C19 outlets; 3 10A breakers cover remaining C13 outlets in banks of 4
