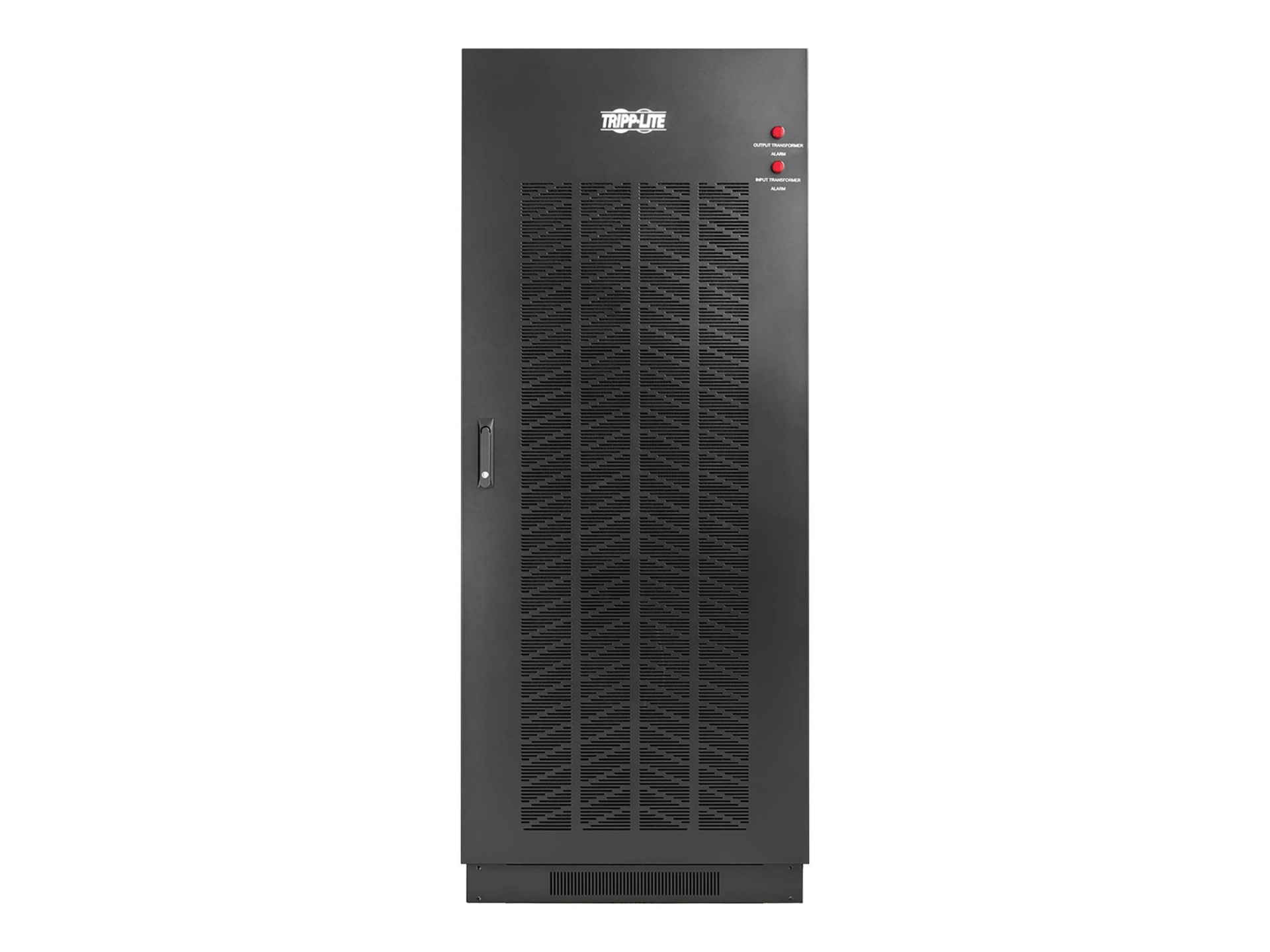

Tripp Lite SmartOnLine S3MT-Series 3-Phase 100kVA Input (480V to 208V)/Output (208V to 480V) Isolation Transformers -
Mfg # S3MT-100KWR480V
CDW # 6583375
Quick tech specs
- Battery backup enclosure with step-down and step-up transformers offers line isolation and protection to the connected 3-phase UPS and its load
- Up to 97.8% efficiency with a quiet acoustic profile less than 65dBA
- Compatible with select 80–100kVA/kW Tripp Lite S3M-Series 208V 3-phase UPS systems
- Dual 100kVA/kW 480V transformers for government/healthcare and corporate settings
- Rugged stainless steel housing w/ compact footprint comes ready for installation
- 2 Year Tripp Lite Warranty
Know your gear
Get Complete Step-Down/Step-Up and Isolation Protection
Tripp Lite's S3MT-100KWR480V includes two transformers in a single cabinet: a 480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up transformer. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The dual transformers are ideal for 4-wire (3Ph+N+PE) loads in government, manufacturing, healthcare and corporate settings with 480V electrical mains and 480V IT loads.
Performs with High Efficiency up to 97.8%
Not only is the S3MT-100KWR480V wrap-around transformer very efficient, with up to 97.8 percent efficiency, but it is also very quiet with a noise profile less than 65 dBA. Built-in circuit breakers on both transformers help prevent dangerous power overloads. Eight ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with red alarm indicators to provide over-temperature warning and overheating protection.
Small Footprint for Quick Installation in a Compact Space
The compact footprint enables installation of the S3MT-100KWR480V with minimal space. The rugged stainless steel housing ships ready for immediate tower installation with a compatible 80–100kVA/kW Tripp Lite S3M-Series 3-phase UPS system.
