Mfg. Part: CR921-PKU-F0 | CDW Part: 2601224 | UNSPSC: 26121604
Request PricingCall

This item was discontinued on February 10, 2014.

Sales Assistance

800.808.4239 Mon-Fri 7am-7:30pm CT

Answer within 24 hours.


Have leasing questions? Let us know how can we help.

Note: Leasing is available to organizations only. Leasing is not available to individuals.
Mon-Fri 7am-7:30pm CT
  • Barcode scanner
  • handheld
  • decoded
  • USB
View More
Product Overview
Main Features
  • Barcode scanner
  • handheld
  • decoded
  • USB

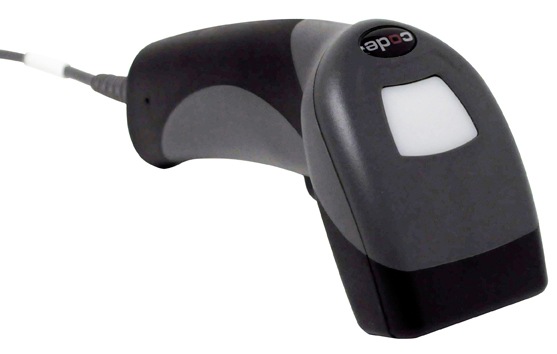

If you are thinking about adding the capability of reading 2D symbologies to your application but are not quite ready to make the investment, Code's CR900FD is the smart choice and the right choice. The CR900FD is Code's entry-level, area imaging device come standard with the ability to read all of the most popular 1D bar codes, but is designed with flexible decoding capabilities that give you the option to upgrade to a selection of Stacked or 2D bar code symbologies.

The CR900FD has several major advantages over single-line laser scanners and linear imagers by providing full omnidirectional reading of standard 1D symbologies, as well as the ability to read bar codes off of mobile phone screens, all at linear scanner prices. The CR900FD has both a manual trigger as well as an auto-detection mode when used with the universal stand. Other features include a bright blue aiming bar, rapid disconnect cables and a dark gray housing that is sure to match your system.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Barcodes: Codabar , Code 128 , Code 39 , Code 93 , EAN/JAN , GS1 DataBar , Interleaved 2 of 5 , UPC
Features: Triggered
Interface: USB
Light Source Wave Length: 650 nm
Pitch (Degrees): 60
Skew (Degrees): 60

Connectivity Details Length: 6 ft
Connectivity Details Type: USB cable

Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing)
Max Operating Temperature: 131 °F
Min Operating Temperature: -4 °F

Brand: Code
Compatibility: PC
Manufacturer: Code Corporation
Model: Reader 900FD (CR900FD)
Packaged Quantity: 1
Product Line: Code

Input Device
Connectivity Technology: Wired
Interface Type: USB
OK Notification: Beeper , LED indicator
TTL Decoding: Decoded

Interface Required
Connector Type: Type A
Total Qty: 1
Type: USB

Color: Dark gray
Compliant Standards: IP54
Included Accessories: Stand

Power Device
Electric Current Required: 450 mA (operating)

Form Factor: Handheld
Scan Element Type: CMOS
Type: Barcode scanner

Support Details Full Contract Period: 5 years
Support Details Type: Limited warranty

Dimensions & Weight
Depth: 2.8 in
Height: 5.5 in
Weight: 3.9 oz
Width: 2 in

Cable Details
Included Qty: 1

Flash Memory
Installed Size: 128 MB

Installed Size: 32 MB

Service & Support
Type: 5 years warranty

Shock & Vibration Tolerance
Drop Specification: 6 ft to concrete
